Home > Air Conditioners > Split System cellar air conditioner > Air split-system with ceiling evaporator > Air conditioner for natural wine cellar 2370 W - Cold, humidifier and heating Friax

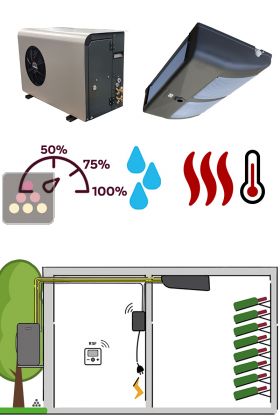

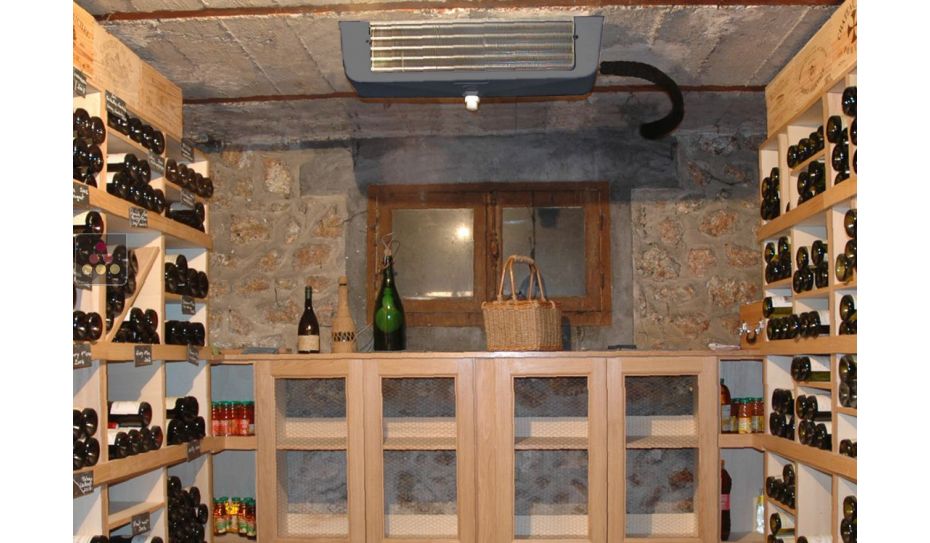

Air conditioner for natural wine cellar 2370 W - Cold, humidifier and heating


FRIAX SPLIT SYSTEM EVPL
Ref. : ACI-FRX40122H

Air conditioner for natural wine cellar 2370 W - Cold, humidifier and heating
Natural wine cellar Air Conditioner Friax
France
  • Temperature number : 1
  • Range of adjustment : Adjustable between 8° and 16°C
  • Capacity of the model : 122 m3
  • Level of range : Upscale and refined
  • Model colour : Group: Light grey / Evaporator: Anthracite
  • Dimensions : H496/210*W763/1174*D376/440 mm
  • Installation temperature min / max : -15°C / 40°C

8985,00 €

EXCL TAX

Of which 10,02 € EXCL TAX visible fee incl

Delivery in 30 days

FREE DELIVERY in France (1)

Your product's features :

Set drain water pump :
To be defined
Water pressure limiter :
To be defined
Extension tube option :
To be defined
Noise reduction kit for cooling unit :
To be defined
Wall mounting kit :
To be defined
Wine Supervisor kit :
To be defined
Quantity :
Select your options
ADD TO BASKET

Please wait ...

Your product's options:

1 Set drain water pump

Hide the option

Without pump
Free

Incompatible avec l'option

Without pump
With drain water pump
440,00 €

Incompatible avec l'option

With drain water pump

2 Water pressure limiter

See the option

Without limiter kit
Humidifier water inlet pressure must not exceed 2.8 bar
Free

Incompatible avec l'option

Without limiter kit Humidifier water inlet pressure must not exceed 2.8 barHumidifier water inlet pressure must not exceed 2.8 bar
Secure connection kit for humidifier
Included : 10m 1/4
280,00 €

Incompatible avec l'option

Secure connection kit for humidifier Included : 10m 1/4" polyethylene flexible tubing, 1x overflow safety valve, 1x isolation valve 1/4" 1/4", 1x pressure limiter valve 1/4", 3x 1/4" JG - 3/4" F connection, 1x Y 1/4" 1/4" 1/4"Included : 10m 1/4

3 Extension tube option

See the option

Without tube extension
Free

Incompatible avec l'option

Without tube extension
With 20 meter extension tube
62,50 €

Incompatible avec l'option

With 20 meter extension tube

4 Noise reduction kit for cooling unit

See the option

Without Kit
The noise level of the unit is mentionned on the Technologies section below
Free

Incompatible avec l'option

Without KitThe noise level of the unit is mentionned on the Technologies section belowThe noise level of the unit is mentionned on the Technologies section below
With Kit included
Reduction of the condensing unit noise (-3dB)
195,00 €

Incompatible avec l'option

With Kit includedReduction of the condensing unit noise (-3dB)Reduction of the condensing unit noise (-3dB)

5 Wall mounting kit

See the option

Without wall mounting kit (GCH)
Free

Incompatible avec l'option

Without wall mounting kit (GCH)
With wall mounting kit (GCH)
90,00 €

Incompatible avec l'option

With wall mounting kit (GCH)

6 Wine Supervisor kit

See the option

Remote control
The air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open field
Free

Incompatible avec l'option

Remote controlThe air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open fieldThe air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open field
Modbus connection to home automation
Synchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.
515,00 €

Incompatible avec l'option

Modbus connection to home automationSynchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.Synchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.
Mobile App access V3
A dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles
515,00 €

Incompatible avec l'option

Mobile App access V3A dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profilesA dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles
Quantity :

Share this product

The wine cabinet FRIAX SPLIT SYSTEM EVPL ACI-FRX40122H final display :

Air conditioner for natural wine cellar 2370 W - Cold, humidifier and heating

Technical data

General features :

Capacity of the model :
122 m3
Level of range :
Upscale and refined
:
Split System
:
20 m
:
20 m
Model colour :
Group: Light grey / Evaporator: Anthracite
Installation temperature min / max :
-15°C / 40°C
Warranty :
1 year parts, labour and return to factory

Equipment :

Humidity :
Regulation by electronic humidifier
Hygrometer :
Digital display and Humidity Sensor
Alarm :
Yes
Switch: on / off:
Yes

Regulation :

Temperature number :
1
Range of adjustment :
Adjustable between 8° and 16°c
Regulation :
Electronic
Setting :
Display :
Digital with wireless remote control
:
Wireless remote control with digital display

Technologies :

Cold production :
By compressor
Heat production :
Yes
Heat trigger :
Automatic
Winter function :
Yes
No vibration :
Compressor mounted on anti-vibration damper
Type of gas :
R513A
Electrical current (a) :
11.06/5.12

:

:
2370 W
:
1214 W
:
43 dB
:
Kit in option
:
1170 m3/h
:
Ral7016 + anodic grey natura
Type of gas :
R513A

:

:
3
:
870 m3/h
:
1000 W
:
Yes
:
Flare 1/4
:
Ral 7024

Performance :

:
230v/1+t
Noise level (dBA) :
43

Dimensions :

Dimensions :
H496/210*W763/1174*D376/440 mm
Net weight :
62.5 kg
 :
496 * 763 * 376 mm / 46 kg
 :
210 * 1174 * 440 mm / 13.5 kg
 :
242 * 254 * 96 mm / 3 kg
Packaging dimensions :
H700*W800*D1200 mm
Gross weight :
75 kg
Volume :
0.67 m3
Origin of manufacture:
France France

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
