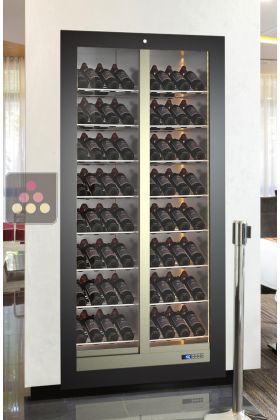

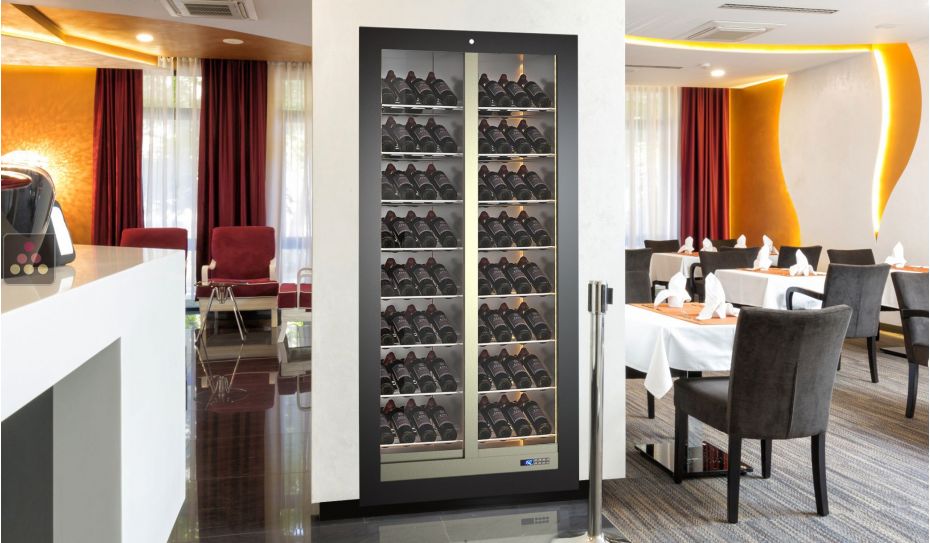

Built-in multi-purpose wine cabinet for storage or service - Inclined bottles - Without cladding


CALICE DESIGN HOME BUILT-IN
Ref. : ACI-TCB301N-R290 (TE-BM12)

Built-in multi-purpose wine cabinet for storage or service - Inclined bottles - Without cladding
Calice Design wine cabinet
  • Temperature number : Multi-Temperatures
  • Range of adjustment : Adjustable from 4 to 16°C
  • Capacity of the model : 112 bottles
  • Level of range : Upscale and refined
  • Model colour : Customizable
  • Door frame colour : Natural aluminium (optional matte black)
  • Dimensions : H1857*W857*D530 mm
  • Installation temperature min / max : 16°C / 30°C

Product no longer
manufactured
Have a question?
Need some advice?
Contact us

Your product's options:

1 Completion of the metallic parts

Hide the option

Standard : Natural Aluminium
Natural Aluminium door frames, internal coating and bottle holders
Free

Incompatible avec l'option

Standard : Natural AluminiumNatural Aluminium door frames, internal coating and bottle holdersNatural Aluminium door frames, internal coating and bottle holders
Black door frames and handles
The door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminium
370,00 €

Incompatible avec l'option

Black door frames and handlesThe door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminiumThe door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminium
All Black finish - int. and ext. - Black
All the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finish
1600,00 €

Incompatible avec l'option

All Black finish - int. and ext. - BlackAll the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finishAll the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finish

2 Remote control by mobile app

See the option

No remote control
The appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).
Free

Incompatible avec l'option

No remote controlThe appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).The appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).
Remote control by mobile app
Remote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or Italian
290,00 €

Incompatible avec l'option

Remote control by mobile appRemote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or ItalianRemote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or Italian

3 Colour & control of the LED lighting

See the option

Warm white without control
Warm white LED (2700-3200°K) without dimmer, switch control (or mobile app if connected appliance)
Free

Incompatible avec l'option

Warm white without controlWarm white LED (2700-3200°K) without dimmer, switch control (or mobile app if connected appliance)Warm white LED (2700-3200°K) without dimmer, switch control (or mobile app if connected appliance)
Colored light - dimmer & remote control
Colored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)
220,00 €

Incompatible avec l'option

Colored light - dimmer & remote controlColored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)Colored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)
Dynamic white - dimmer & remote control
LED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)
280,00 €

Incompatible avec l'option

Dynamic white - dimmer & remote controlLED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)LED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)

4 Internal display ventilation

See the option

Standard ventilation (GM)
The internal fans of the wine cabinet are standard
Free

Incompatible avec l'option

Standard ventilation (GM)The internal fans of the wine cabinet are standardThe internal fans of the wine cabinet are standard
Enhanced internal ventilation (GM)
Set of 2 internal fans, slightly more powerful, allowing for a more uniform indoor temperature with about a 2° difference between the top and bottom. Noise level of 34.5 dB(A).
40,00 €

Incompatible avec l'option

Enhanced internal ventilation (GM)Set of 2 internal fans, slightly more powerful, allowing for a more uniform indoor temperature with about a 2° difference between the top and bottom. Noise level of 34.5 dB(A).Set of 2 internal fans, slightly more powerful, allowing for a more uniform indoor temperature with about a 2° difference between the top and bottom. Noise level of 34.5 dB(A).

5 Altimeter valve - Installation at altitude

See the option

Without valve
Suitable for any installation below 1000m altitude
Free

Incompatible avec l'option

Without valveSuitable for any installation below 1000m altitudeSuitable for any installation below 1000m altitude
With altimeter valve
Necessary for any installation above 1000m of altitude
210,00 €

Incompatible avec l'option

With altimeter valveNecessary for any installation above 1000m of altitudeNecessary for any installation above 1000m of altitude

6 Voltage

See the option

220 Volts / 50 Hz
In France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertz
Free

Incompatible avec l'option

220 Volts / 50 HzIn France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertzIn France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertz
115 Volts / 60 Hz with ETL mark
Modification of electric parts to enable compatibility with voltage and frequency 115V/60Hz
555,00 €

Incompatible avec l'option

115 Volts / 60 Hz with ETL markModification of electric parts to enable compatibility with voltage and frequency 115V/60HzModification of electric parts to enable compatibility with voltage and frequency 115V/60Hz

7 Electrical socket type

See the option

Standard - F-type socket
Standard socket used in Europe (except UK)
Free

Incompatible avec l'option

Standard - F-type socketStandard socket used in Europe (except UK)Standard socket used in Europe (except UK)
B-type socket
Type of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West Indies
35,00 €

Incompatible avec l'option

B-type socketType of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West IndiesType of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West Indies
G-type socket
Type of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian Peninsula
35,00 €

Incompatible avec l'option

G-type socketType of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian PeninsulaType of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian Peninsula
J-type socket
Type of socket mainly used in Switzerland
35,00 €

Incompatible avec l'option

J-type socketType of socket mainly used in SwitzerlandType of socket mainly used in Switzerland
Quantity :

Share this product

The wine cabinet CALICE DESIGN HOME BUILT-IN ACI-TCB301N-R290 (TE-BM12) final display :

Built-in multi-purpose wine cabinet for storage or service - Inclined bottles - Without cladding

Technical data

General features :

Capacity of the model :
112 bottles
Installation :
Built-it models
Level of range :
Upscale and refined
Door version :
Sliding (UV-resistant double glazing)
Model colour :
Customizable
Door frame colour :
Natural aluminium (optional matte black)
Installation temperature min / max :
16°C / 30°C
Climate rating :
SN-N
Warranty :
1 year parts

Equipment :

Humidity :
Suitable for service and storage up to 3-5 years, but not for long term ageing
Hygrometer :
No
Carbon filter :
Yes
Adjustable feet :
Oui
Lock :
Yes
Adaptable interior:
No
Alarm :
Optional, via mobile app
Lighting :
Full height lateral LED lighting

Regulation :

Temperature number :
Multi-Temperatures
Range of adjustment :
Adjustable from 4 to 16°c
Regulation :
Electronic
Setting :
Exterior
Display :
Digital and Exterior

Technologies :

Cold production :
Static cooling or circulated by compressor
Heat production :
Automatic defrost
Winter function :
No
No vibration :
Compressor mounted on anti-vibration damper
Type of gas :
R600A
Electrical power (w) :
120

Performance :

Consumption kwh/24h :
1.24
Consumption kwh/year :
452 kwh ie approx. 91 € incl tax/ year
Noise level (dBA) :
39
Consumption :
1.2 kW/24h ie approx. 62 € incl tax/ year

Dimensions :

Dimensions :
H1857*W857*D530 mm
Net weight :
116 kg
 :
1860 * 862 * 540 mm
Packaging dimensions :
H2060*W1000*D800 mm
Gross weight :
122 kg
Volume :
1.65 m3
Origin of manufacture:
Europe Europe

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
