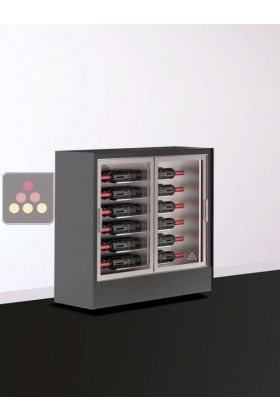

Wine display cabinet - HOME - FIT frame - Horizontal bottles - 36cm deep


CALICE DESIGN HOME
Ref. : ACI-HMDR13002H

Wine display cabinet - HOME - FIT frame - Horizontal bottles - 36cm deep
Calice Design wine cabinet
  • Temperature number : Multi-Temperatures
  • Range of adjustment : Adjustable from 4 to 16°C
  • Capacity of the model : 24 bottles
  • Level of range : Upscale and refined
  • Model colour : Customizable
  • Door frame colour : Natural aluminium (optional matte black)
  • Dimensions : H910*W914*D374 mm
  • Installation temperature min / max : 16°C / 30°C

4800,00 €

EXCL TAX

Of which 20,20 € EXCL TAX visible fee incl

Delivery in 42 days

FREE DELIVERY in France (1)

Your product's features :

Colour of the magnetic cladding :
To be defined
Completion of the metallic parts :
To be defined
Remote control by mobile app :
To be defined
Colour & control of the LED lighting :
To be defined
Altimeter valve - Installation at altitude :
To be defined
Voltage :
To be defined
Electrical socket type :
To be defined
Quantity :
Select your options

Please wait ...

Your product's options:

1 Colour of the magnetic cladding

Hide the option

Raw wood (HPL)
Raw HPL cover, to be painted or laminated by your care
900,00 €

Incompatible avec l'option

Raw wood (HPL)Raw HPL cover, to be painted or laminated by your careRaw HPL cover, to be painted or laminated by your care
Chestnut
Wooden cladding covered with a chestnut finish laminate
1100,00 €

Incompatible avec l'option

ChestnutWooden cladding covered with a chestnut finish laminateWooden cladding covered with a chestnut finish laminate
Teak
Wooden cladding covered with a Teak finish laminate
1100,00 €

Incompatible avec l'option

TeakWooden cladding covered with a Teak finish laminateWooden cladding covered with a Teak finish laminate
Loft Wenge
Wooden cladding covered with a Loft Wenge finish laminate
1100,00 €

Incompatible avec l'option

Loft WengeWooden cladding covered with a Loft Wenge finish laminateWooden cladding covered with a Loft Wenge finish laminate
Ash larch
Wooden cladding covered with a Ash larch finish laminate
1100,00 €

Incompatible avec l'option

Ash larchWooden cladding covered with a Ash larch finish laminateWooden cladding covered with a Ash larch finish laminate
Matte white
Wooden cladding covered with a matte white laminate
1200,00 €

Incompatible avec l'option

Matte whiteWooden cladding covered with a matte white laminateWooden cladding covered with a matte white laminate
Textured black
Wooden cladding covered with a textured Black finish laminate
1200,00 €

Incompatible avec l'option

Textured blackWooden cladding covered with a textured Black finish laminateWooden cladding covered with a textured Black finish laminate
Dove-grey Concrete
Wooden cladding covered with a Dove-grey concrete finish laminate
1200,00 €

Incompatible avec l'option

Dove-grey ConcreteWooden cladding covered with a Dove-grey concrete finish laminateWooden cladding covered with a Dove-grey concrete finish laminate
Corten
Wooden cladding covered with a Corten finish laminate
1200,00 €

Incompatible avec l'option

CortenWooden cladding covered with a Corten finish laminateWooden cladding covered with a Corten finish laminate
Satin-finish steel
Wooden cladding covered with a Satin-finish steel laminate
1200,00 €

Incompatible avec l'option

Satin-finish steelWooden cladding covered with a Satin-finish steel laminateWooden cladding covered with a Satin-finish steel laminate
Satin black
Wooden cladding covered with a satin black finish laminate
1200,00 €

Incompatible avec l'option

Satin blackWooden cladding covered with a satin black finish laminateWooden cladding covered with a satin black finish laminate
Matte RAL colour
Magnetic cladding painted in the RAL colour of your choice, matte finish
1450,00 €

Incompatible avec l'option

Matte RAL colourMagnetic cladding painted in the RAL colour of your choice, matte finishMagnetic cladding painted in the RAL colour of your choice, matte finish

2 Completion of the metallic parts

See the option

Standard : Natural Aluminium
Natural Aluminium door frames, internal coating and bottle holders
Free

Incompatible avec l'option

Standard : Natural AluminiumNatural Aluminium door frames, internal coating and bottle holdersNatural Aluminium door frames, internal coating and bottle holders
Black door frames and handles
The door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminium
370,00 €

Incompatible avec l'option

Black door frames and handlesThe door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminiumThe door frames and handles are laquered with a matte black powder coating. Internal coating and bottle holders remain in natural aluminium
All Black finish - int. and ext. - Black
All the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finish
1600,00 €

Incompatible avec l'option

All Black finish - int. and ext. - BlackAll the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finishAll the metallic parts inside (beams, panels, bottle holders) and outside (door profiles, frame, handles and flanks) are painted in matte black. Depending on model, some small parts (screw caps, shelf supports) may remain in stainless steel finish

3 Remote control by mobile app

See the option

No remote control
The appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).
Free

Incompatible avec l'option

No remote controlThe appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).The appliance is controlled by a regulator on the front panel (On/Off, temperature setting, lighting).
Remote control by mobile app
Remote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or Italian
290,00 €

Incompatible avec l'option

Remote control by mobile appRemote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or ItalianRemote control of the appliance's parameters via a dedicated mobile application (temperature setting, alarms, LED lighting, etc.). Also allows remote support and assistance. App in English or Italian

4 Colour & control of the LED lighting

See the option

Natural white without control
Natural white LED light (4000-4500°K) without dimmer, switch control (or mobile app if connected appliance)
Free

Incompatible avec l'option

Natural white without controlNatural white LED light (4000-4500°K) without dimmer, switch control (or mobile app if connected appliance)Natural white LED light (4000-4500°K) without dimmer, switch control (or mobile app if connected appliance)
Colored light - dimmer & remote control
Colored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)
220,00 €

Incompatible avec l'option

Colored light - dimmer & remote controlColored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)Colored RGB LED lights with remote control to choose various colours, sets lighting effects and the dimmer. White colour is a cold white (6000-6500°K)
Dynamic white - dimmer & remote control
LED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)
280,00 €

Incompatible avec l'option

Dynamic white - dimmer & remote controlLED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)LED light with dimmer remote control and adjustable colour from warm white (2700°K) to cold white (6000°K)

5 Altimeter valve - Installation at altitude

See the option

Without valve
Suitable for any installation below 1000m altitude
Free

Incompatible avec l'option

Without valveSuitable for any installation below 1000m altitudeSuitable for any installation below 1000m altitude
With altimeter valve
Necessary for any installation above 1000m of altitude
95,00 €

Incompatible avec l'option

With altimeter valveNecessary for any installation above 1000m of altitudeNecessary for any installation above 1000m of altitude

6 Voltage

See the option

220 Volts / 50 Hz
In France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertz
Free

Incompatible avec l'option

220 Volts / 50 HzIn France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertzIn France, as in most other European countries, alternating current usually distributed at a voltage of 220 Volts and a frequency of 50 hertz
115 Volts / 60 Hz with ETL mark
Modification of electric parts to enable compatibility with voltage and frequency 115V/60Hz
555,00 €

Incompatible avec l'option

115 Volts / 60 Hz with ETL markModification of electric parts to enable compatibility with voltage and frequency 115V/60HzModification of electric parts to enable compatibility with voltage and frequency 115V/60Hz

7 Electrical socket type

See the option

Standard - F-type socket
Standard socket used in Europe (except UK)
Free

Incompatible avec l'option

Standard - F-type socketStandard socket used in Europe (except UK)Standard socket used in Europe (except UK)
B-type socket
Type of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West Indies
35,00 €

Incompatible avec l'option

B-type socketType of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West IndiesType of socket mainly used in North America (USA, Canada, Mexico), Japan and the French West Indies
G-type socket
Type of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian Peninsula
35,00 €

Incompatible avec l'option

G-type socketType of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian PeninsulaType of socket mainly used in Great Britain, Ireland, Malaysia, Malta, Singapore and the Arabian Peninsula
J-type socket
Type of socket mainly used in Switzerland
35,00 €

Incompatible avec l'option

J-type socketType of socket mainly used in SwitzerlandType of socket mainly used in Switzerland
Quantity :

Share this product

The wine cabinet CALICE DESIGN HOME ACI-HMDR13002H final display :

Wine display cabinet - HOME - FIT frame - Horizontal bottles - 36cm deep

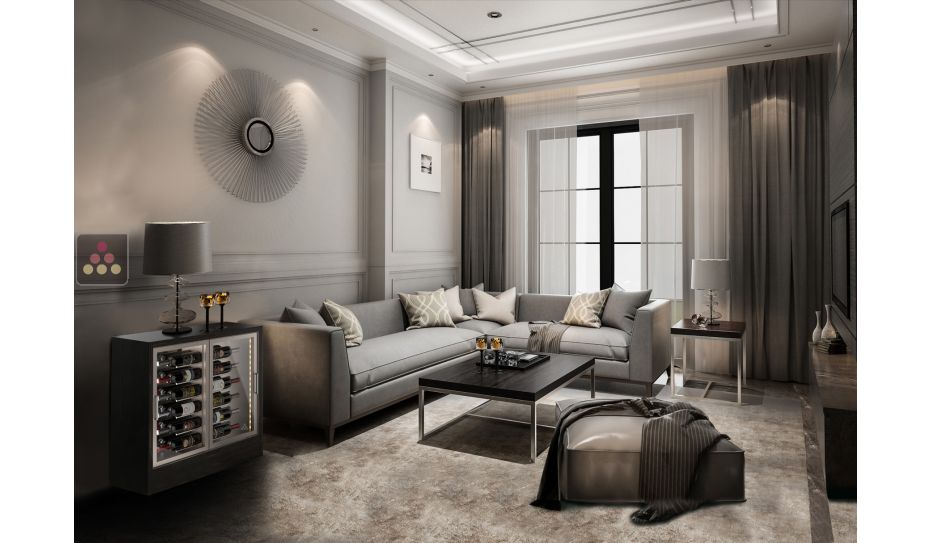

General overview

Wine display cabinet - HOME - FIT frame - Horizontal bottles - 36cm deep

With this FIT version modular built-in wine cabinet, with a capacity of 24bottles, with the magnetic frame on the front panel only, you’ll be able to present your wines in an original way as a perfect showcase, while keeping them at the perfect temperature for serving or storing.

Versatile use : this unit has its own regulation, with the possibility to set the bottom temperature and to activate or not the internal ventilation.
Depending on the setting, each unit can be used :
- either for serving white wines, rosés and champagnes only
- or for serving red wines only
- or in multi-purpose mode for service and conservation of all types of wine : the temperature will then increase from 4 to 16°C over the entire height of the cabinet : 4-8°C for serving Champagne, 8-12°C for serving white and rosé wines, 10-14°C for conserving wines and 14-16°C for serving red wines.

Horizontal display: in this version, the cabinet can hold up to 24 bottles, lying on aluminum tubes, widthwise, which leaves the label of the bottle placed in front visible. A total of 12 bottles are placed in the front, with the label visible, and 12 are in the back, not visible. The maximum diameter of the bottles is 93mm, which allows for most 75cl sizes (Bordeaux, Burgundy, Champagne).
Important: the interior equipment included corresponds to the main product picture and cannot be modified after manufacture. However, other equipment versions exist to suit your needs (inclined bottles, vertical bottles or mixed equipment). Do not hesitate to consult the different models available (see In the same range).

Cladding : this model features a customizable FIT frame, allowing modules to be assembled and the design to be tailored to the ambiance of your space, with 18 finishes available. Its sleek design and elegant lines make it a true aesthetic asset.
Crafted from HPL, it provides a highly precise finish, perfectly suited to contemporary interiors and premium spaces. More discreet than a traditional frame, the FIT frame blends seamlessly with the cellar, enhancing its contents while optimizing space.

Smartphone connectivity : as an option, the unit can be remotely controlled via a mobile application on your smartphone: temperature setting, consultation of parameters. This connectivity also allows remote support in case of dysfunction. If you choose this option, all the unit settings must be made exclusively from the application.

Lighting : to highlight your bottles, vertical LED lighting is present over the entire height of the display case, also improving the readability of labels. The standard lighting is natural daylight white (4000°K) and is controlled by a switch on the front. As an option, it is possible to select variable lighting in intensity and colour (either multicolour RGB or different shades of white). In this case, the lighting is controlled by a remote control.

Free standing installation : these display cabinets are designed to be installed freestanding to take advantage of the glass sides. However, it is also possible to install them in a niche. To do so, the space around the feet must remain completely free and an opening must be left above (minimum air passage 200cm² per unit).

Noise level : Private use. This display case has a complete programming dedicated to a domestic use in order to guarantee a very low noise level, and thus place the device in the room you want.

For optimal operation, this model should be installed in a room where the temperature is between 16°C and 30°C and should never be exposed to sunlight. Above 30°C, the lowest temperature settings will be difficult to reach and there is a risk of condensation on the glass panels (depending on ambient humidity and frequency of opening).

Technical data

General features :

Capacity of the model :
24 bottles
Installation :
Free standing
Level of range :
Upscale and refined
Door version :
Glass (double glazing UV)
Model colour :
Customizable
Door frame colour :
Natural aluminium (optional matte black)
Installation temperature min / max :
16°C / 30°C
Climate rating :
SN-N
Warranty :
1 year parts

Equipment :

Humidity :
Suitable for service and storage up to 3-5 years, but not for long term ageing
Hygrometer :
No
Carbon filter :
Optional
Adjustable feet :
Oui
Lock :
Yes
Handle :
Yes
Adaptable interior:
No
Alarm :
Optional, via mobile app
Lighting :
Full height lateral LED lighting

Regulation :

Temperature number :
Multi-Temperatures
Range of adjustment :
Adjustable from 4 to 16°c
Regulation :
Electronic
Setting :
Control panel on the front
Display :
Digital and Exterior

Technologies :

Cold production :
Static cooling or circulated by compressor
Heat production :
Automatic defrost
Heat trigger :
No
Winter function :
No
Nature of the side walls :
Aluminium
Type of back wall :
Aluminium
Type of cladding:
No vibration :
Compressor mounted on anti-vibration damper
Type of gas :
R600A
Electrical power (w) :
120

Performance :

Noise level (dBA) :
37

Dimensions :

Dimensions :
H910*W914*D374 mm
Net weight :
74 kg
Packaging dimensions :
H1000*W1000*D500 mm
Gross weight :
97 kg
Volume :
0.5 m3
Origin of manufacture:
Europe Europe

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
